GRANDGLOW 10000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR SOLAR POWER SYSTEM

Product Categories
Shanghai Hongzhu power Technology Co., LTD
Contact Now

GRANDGLOW 10000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR SOLAR POWER SYSTEM

  • 1
  • 2
  • 3

Network : SDK

Customized support : Software reengineering

Place of Origin : Hubei, China

Brand Name : Grandglow

Model Number : TLC10000

Type : DC/AC Inverters

Output Type : Triple

Output Current : 15A MAX

Output Frequency : 50Hz/60Hz

Size : 440x610x260MM

Weight : 42KG

Warranty : 5 Years/ 10years Optional

MPPT Tracking ways : 1

Protection Class : IP65

LCD : LCD SCREEN

Protection styles : islanding(IEEE1547), Over/under voltage and frequency,overloading

MPPT Effection : 99.90%

power factor : 99.9%

Protect Function : over voltage, short circult, heating, over load

Certificate : SAA,TUV, CE

Packaging Details : ctn

Port : Shanghai

Supply Ability : 500 Piece/Pieces per Month

Price : $598.00 - $718.00/pieces

Contact Now

GRANDGLOW 10000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR SOLAR POWER SYSTEM

Product Description

INPUT VOLTAGE: 850VDC MAX

OUTPUT VOLTAGE: 380VAC/400VAC CAN DO ACCORDING TO DIFFERENT COUNTRIES AND REGIONS

FREQUENCY: 50 / 60HZ

PV PANEL: 250W *120pcs

MPPT TRACK WAYS: 1

MPPT EFFECTION RATE: 99.90%

PROTECTION CLASS: IP65

TURN ON/ TURN OFF VOLTAGE: 200/300VDC


GRANDGLOW 10000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR SOLAR POWER SYSTEM

SPECIFICATION

DC Input

Maximum DC Input Power

10500W

Maximum DC Input Voltage

850VDC

Maximum DC Input Current

30A

MPPT Tracking Number/
Input String Number

1

MPPT Tracking Voltage Range

200-820VDC

Power Off/On Voltage

200/300VDC

AC Output

Rated Power

10000W

Voltage Range

AC 400V(360-440V)
Adjustable according to different countries and regions requirement.

Rated Voltage Range

400VAC

Frequency

50Hz / 60Hz

Phase number

Three Phase

Power Factor

0.99

Max Output Current

15A

Current THD

At Rated Power And In The Sine Wave<5%

Max Efficiency

98%

Europe Efficiency

97%

MPPT Efficiency

99.5%

Structure

Protection Degree

IP65

Cooling Method

Intelligent air cooling

Noise

<50dB

Data Interfaces

RS 485/ RS 232/ (Standard), WiFi Modular(Optional)

Isolation type

Non-isolated

Standby Power Consumption

0W

LCD Display

LCD

DC Switch

Integration

Protection

Support

DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection,
DC/AC Surge Protection, Insulation Resistance Testing, RCD Testing, Upgrade WIFI

RCD Testing

Support

Protection (Inverter)

Input Overvoltage, Output Short Circuit, Overload, Overheat

Protection (Grid)

Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid.

General Parameters

Input Terminal

MC4

Output Terminal

Connect Terminals

Topology

No Transformer

Warranty

5 Years Warranty, Can Be Extended to 10 years

State Grid Function

Yes

AC Switch

Integration

Operation temperature Range

Air Flow, -20 ℃ ~50 ℃

Storage temperature

-25 ℃ ~ 60 ℃

Relative humidity

0~95%

Environment

No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc

Altitude

6600 Feet 2000m, Max. 3000m

Size

440x610x260mm

Weight

42kgs

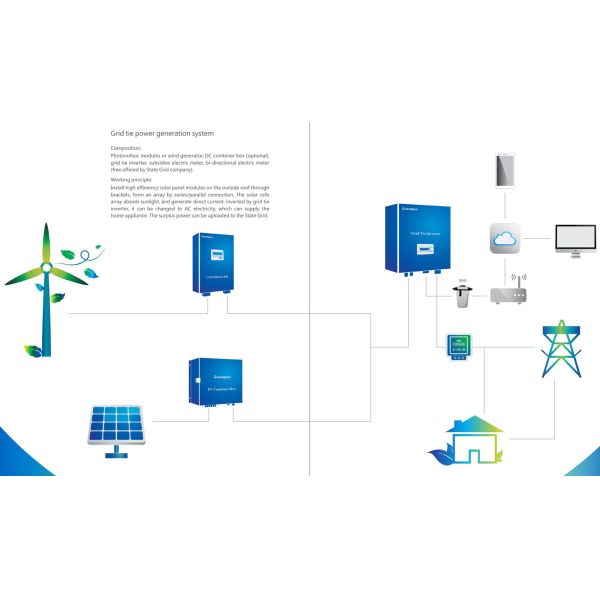

WORKING DIAGRAM
